SEALERS

EM4040T

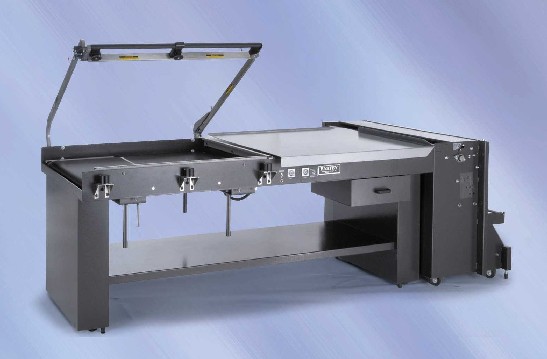

EM-T-SERIES:	Manual L-Sealer with powered takeaway conveyor, magnetic clamping, automatic cycle timing, electric hole punch or pin perf, 16M, 16T, 28M, 28T, 40M, 40T, 3040M, 3040T series includes seal clamps, base, and spare parts kit.
EM-M-SERIES:	Manual L-Sealer with magnet clamping, automatic cycle timing, electric hole punch or pin perforation, 16M, 16T, 28M, 28T series includes seal clamps, base, and spare parts kit.
ECONO- M or T-SERIES	Econo Manual L-Sealer with magnetic clamping, automatic cycle timing, pin perforation, and base. T-Series has a takeaway conveyor.
MAXIMUM FILM WIDTHS	16" SIDE SEAL - 19" ,  20" SIDE SEAL - 24" ,  30" SIDE SEAL - 34" ,  40" SIDE SEAL - 44"

STANDARD FEATURES
Stainless Steel Film Clamps Unique Lower Seal Bar Holds Pad firmly in place Head return cylinder Frame - 1/4" cold rolled steel Simple, easy-to-use Control Panel Easy to operate, maintain and service Heavy-duty Base with tool and parts Drawer Pin Perforation Rugged, long life design	Wide Product Tray to easily separate Film Unique Film Cradle for fast, easy changeover and adjustments Drawer for Spare Parts Kit, manual tools, warranty data 5/16'' Bolts throughout for strength Rugged, long life design Positive actuation of Hole Punch and Seal System Smooth Seal Head Return with Return Cylinder Locking 3" swivel casters

CRADLE STYLE FILM RACK Simple positioning of the film roll provides quick, easy film adjustments and product changeover.

PIN PERFORATION Pin Perforation or Electric Hole Punch provides air evacuation No extra charge if ordered as original equipment.

OPTIONS
Left Handed Machine Food Application Finish White Takeaway Belt USDA approved Stainless Steel Models available Double Film Rack Film Inverter Power Film Unwind	Special product guides Special products and projects Custom Product Trays Electric Hole Punch or Pin PerForation Easy to operate, maintain and service Heavy-duty base with tool and parts drawer

ADDITIONAL OPTIONS
REYNOLDS DUO-SEAL® SYSTEM   Reynolds Duo-SealŪ System features a continuously heated seal bar and is available on most Eastey Sealers.	POWER FILM UNWIND Power assisted rollers accommodate 2 rolls of film.  Easy to follow film threading diagram shows how to guide film through the unwind.  Effortless operation reduces operator fatigue and increases product output.
INVERTING HEAD Inverting head allows the film to come off the back of machine.  This pre-opens the film and minimizes operator effort which in turn increases output.	INVERTING HEAD Unique design detaches the product tray from the inverting head, which simplifies film threading to a push of the film towards the seal area.  The product tray is locked back in position and the pre-opened film is ready to accept product.

EASTEY SEALER SPECIFICATIONS
